QXNY Backup Camera Rear View Reverse AHD1080P/720P Cam Parking Safety Fits Toyota Corolla Yaris Vios Prius Camry Fortuner Avensi

QXNY Backup Camera Rear View Reverse AHD1080P/720P Cam Parking Safety Fits Toyota Corolla Yaris Vios Prius Camry Fortuner Avensi

$18.90 USD
$18.90 USD $18.90 USD
Sale Sold out
Color Name

SPECIFICATIONS

Alarm Type: Alarm Systems,Vehicle Backup Cameras,ACCESSORIES,Front,Front Side,Rear Side

Brand Name: QXNY

Certification: FCC

Choice: yes

Guiding Line: Yes

High-concerned chemical: None

Length of Video Cable: 6M

Lens Material: Plastic + Glass

Material: ABS

Night vision: low-light level 10m visible

Origin: Mainland China

Shell Material: Plastic

Viewing Angle : 170°

Waterproof: Support IP68

Wire or Wireless: Wire

camera angle: 170 degree Golden Fisheye lens

camera pixel: 1920*1080P or 1280*720P


For Toyota Vios 2013-2016

For Toyota Verso 2009-2016

For Toyota Ractis 2011-2016

For Toyota Yaris L 2013-2016

For Toyota Prius C 2012-2016

For Toyota Avensis 2008-2015

For Toyota Camry XV50 2011-2017

For Toyota Highlander XU50 SUV 2013-2016

For Toyota Fortuner 2th AN160 2015-present

For Toyota Corolla Altis Fielder E150 E170 E180 Sedan 2012-2016



Things to Know Before You Purchase

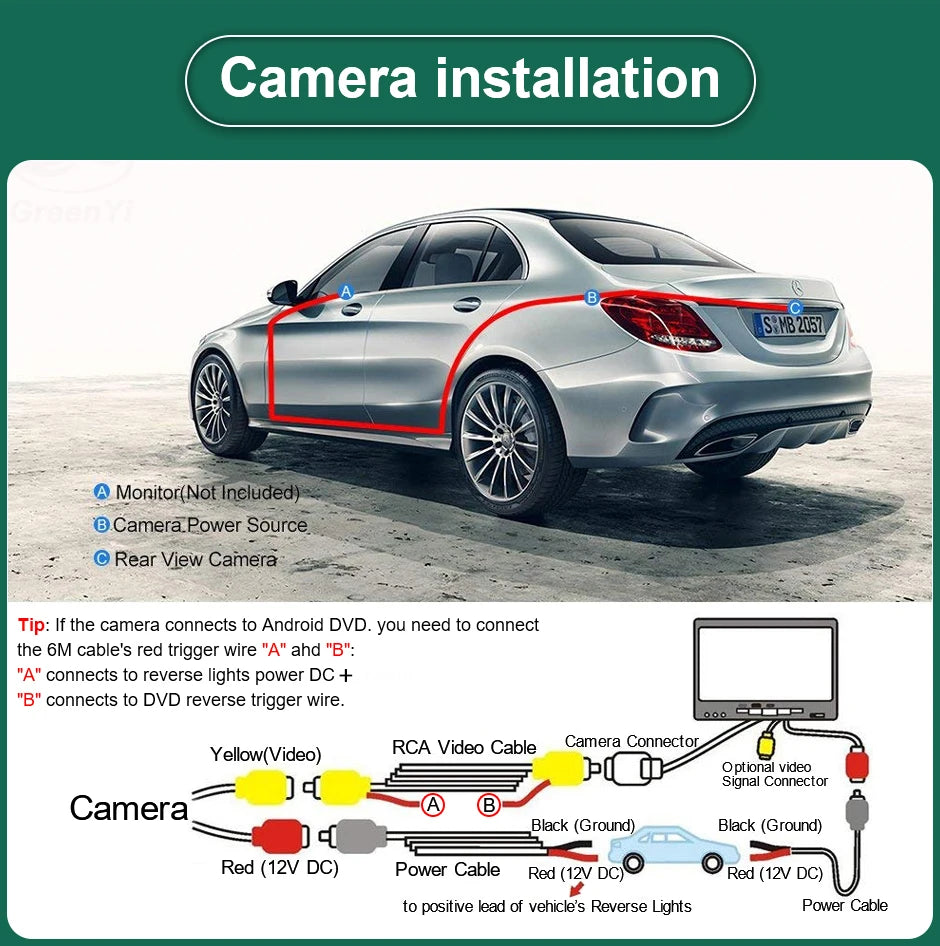

1. Product Specifications: This page provides two camera options (AHD 720P or 1080P). Both support switching between AHD and CVBS video signals, allow image flip, and let you enable or disable parking guidelines. Please make your choice based on your needs. The product uses an RCA connector and requires a DC12V power input.
2:Video Signal Compatibility: The video signal must be compatible with your device. Common signal types are AHD or CVBS (most in-car displays support switching between CVBS and AHD modes).
3:Connector Compatibility: Please ensure the connector type matches your device (e.g., 4-pin or RCA interface).

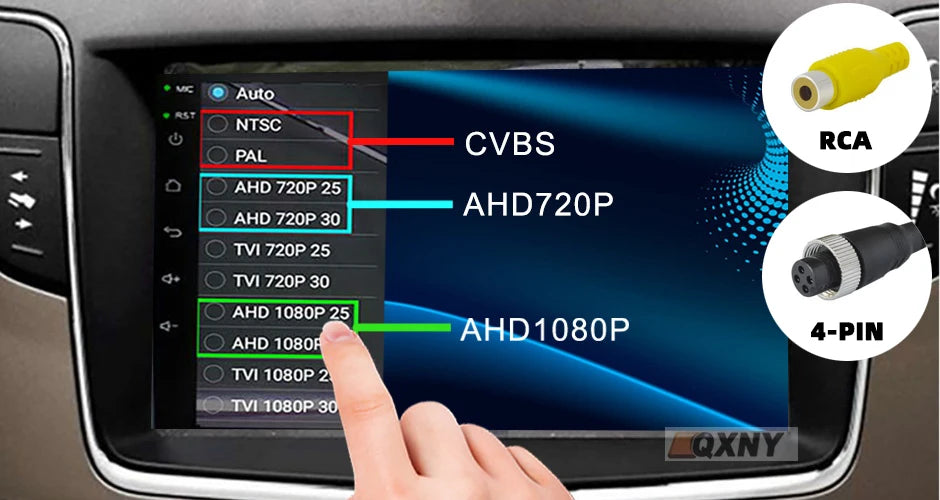

4:Signal Switching Guide: If the display requires signal switching, please navigate: Factory Settings > Reversing (Image) Settings > Select Signal.
As shown in the image below

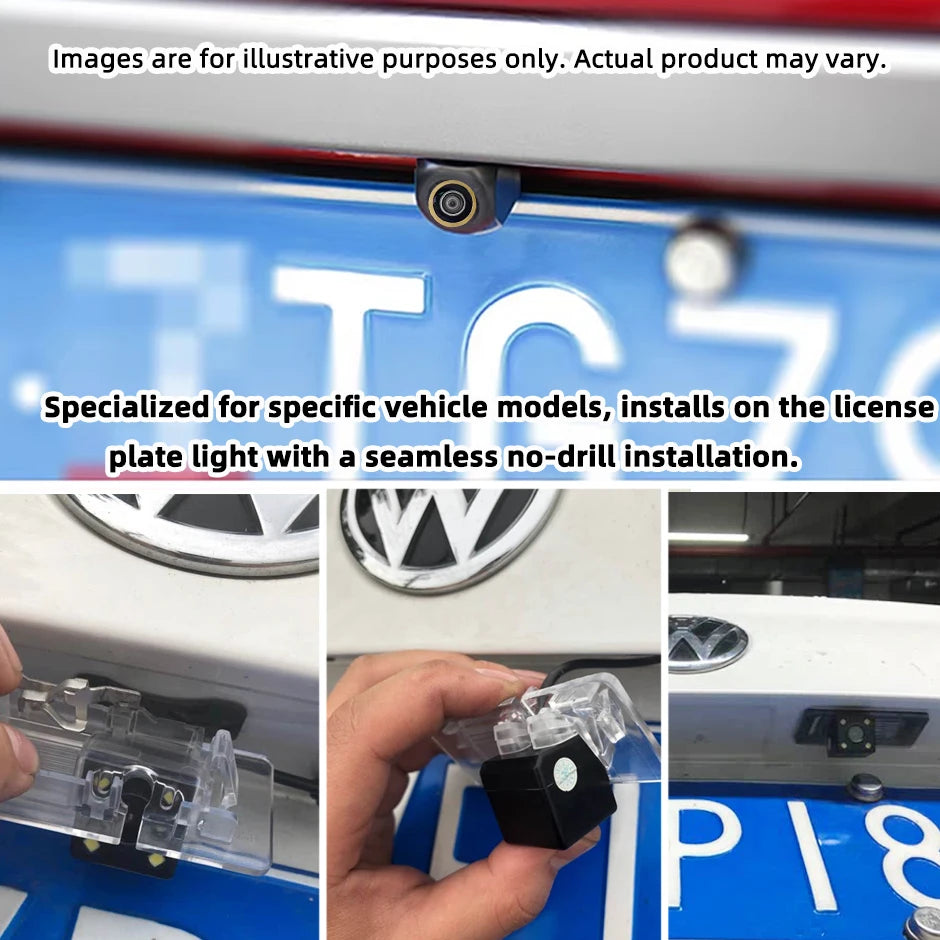

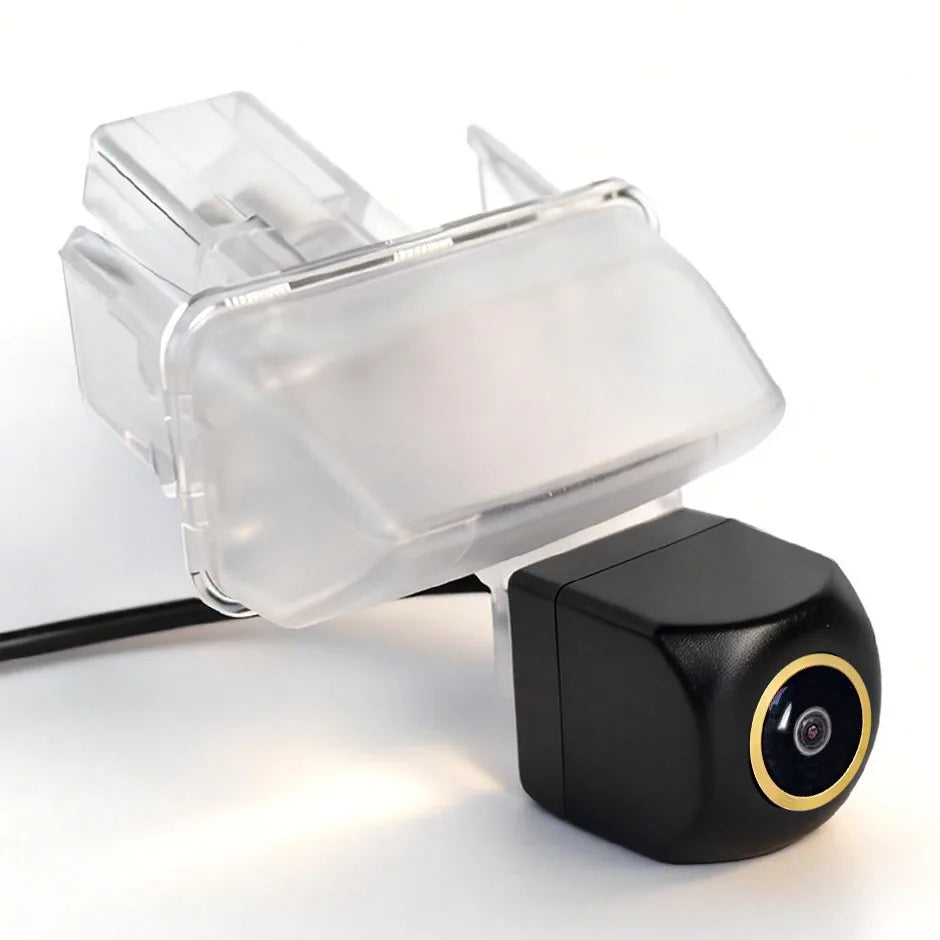

  1. Easy to install – Fits perfectly into the position of the car’s license plate light, matching the original vehicle’s design.

Important Note:

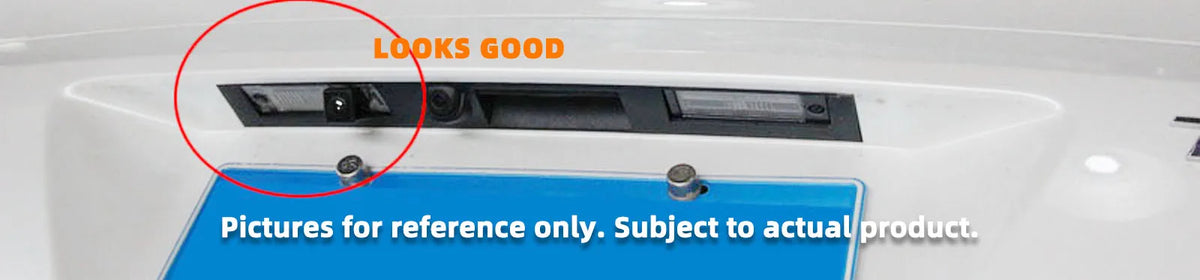

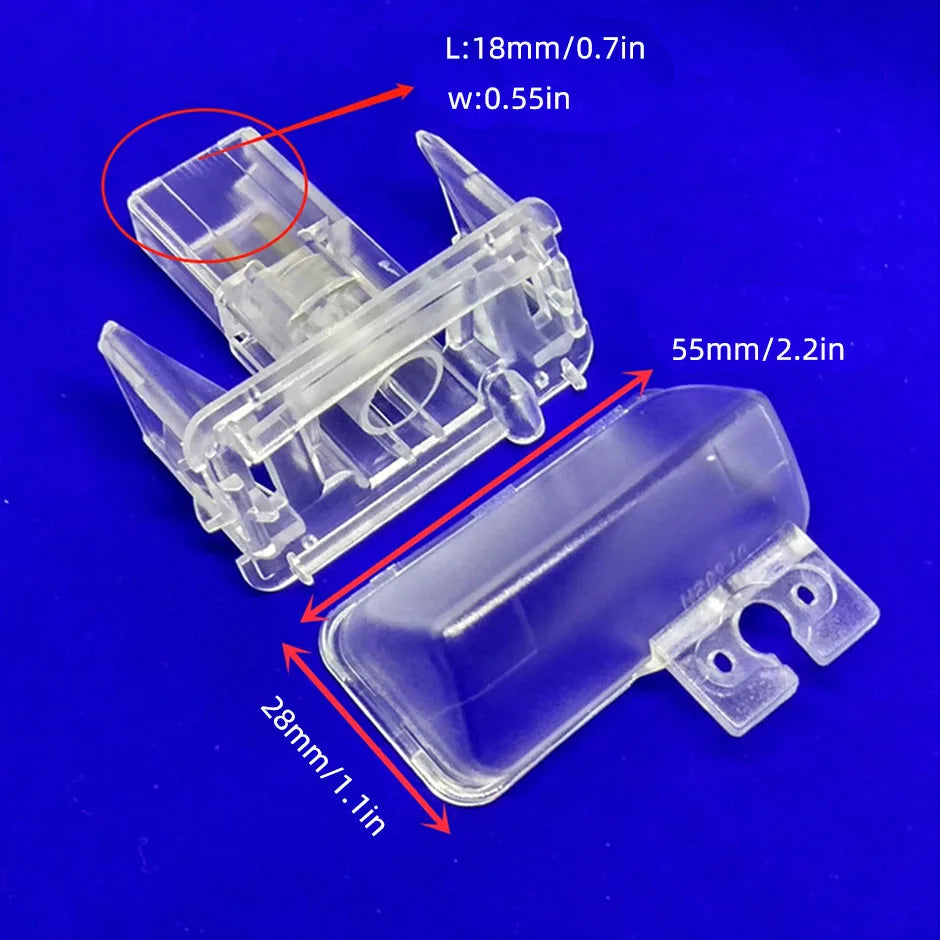

  1. Please check whether it matches your car’s license plate light housing in both size and appearance.

  2. Note that the same car model may vary slightly across different countries or regions.

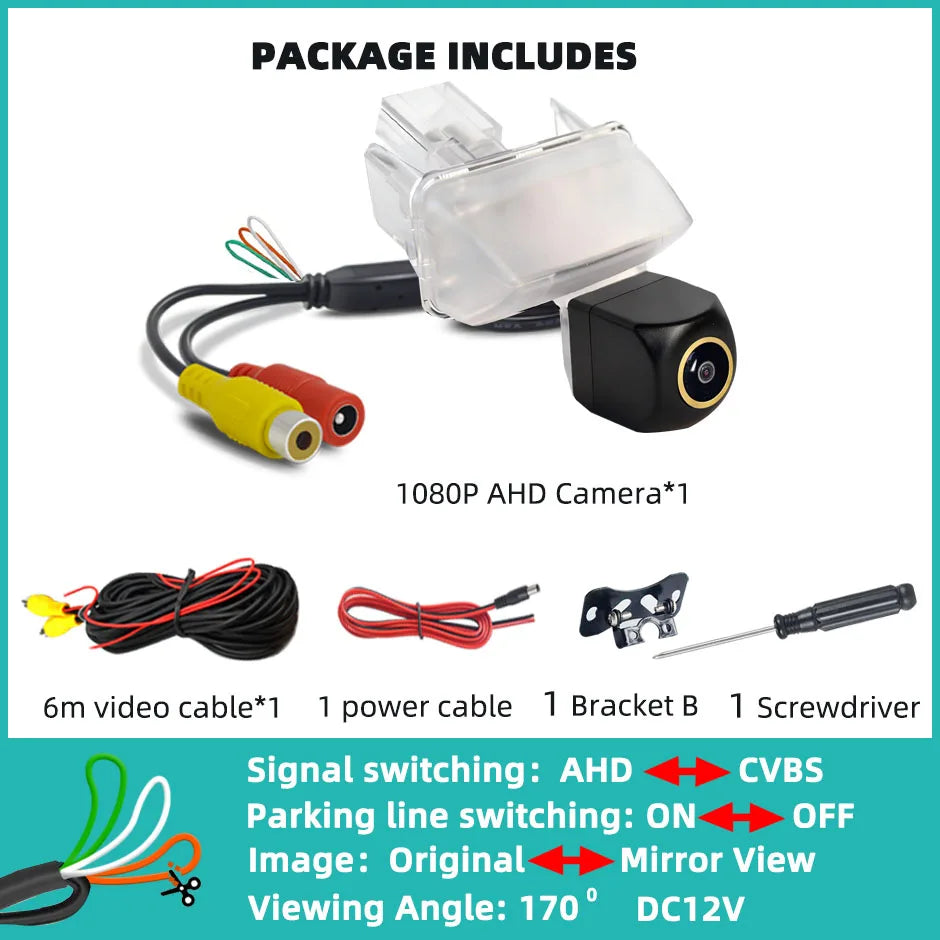

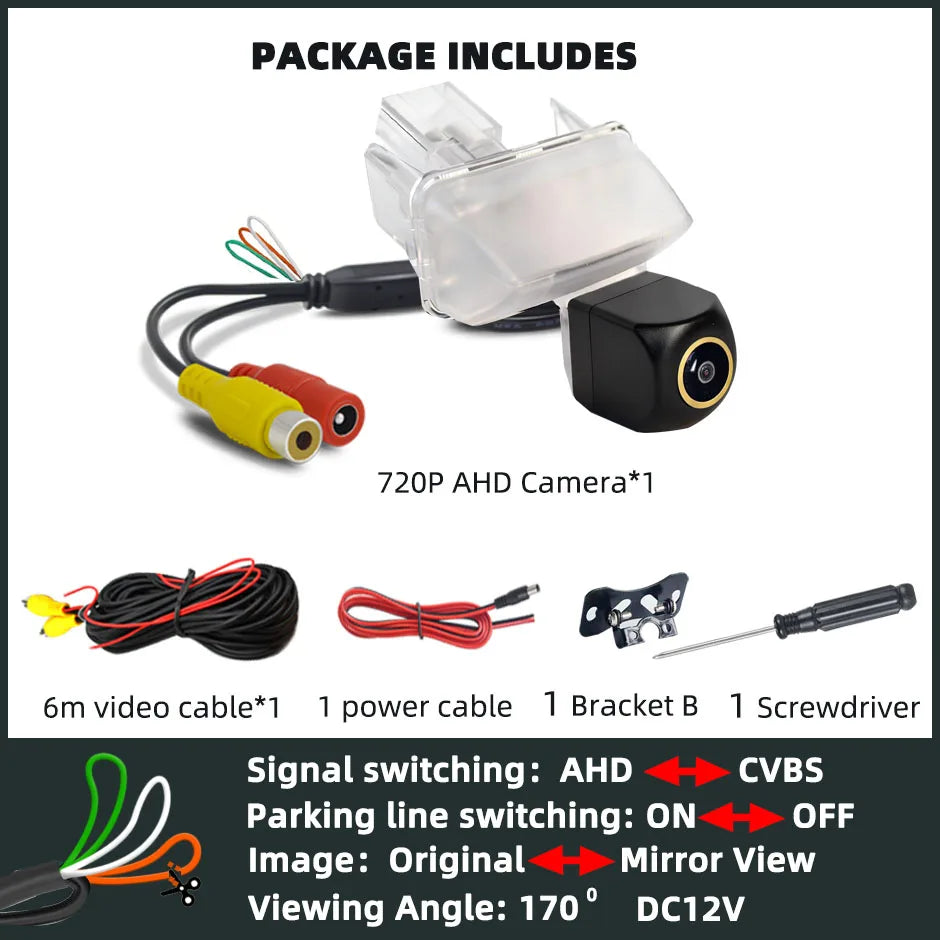

1 x Rear View Camera
1 x 6m Video Cable
1 x 1m Power Cable
1 x screwdriver
2 x brackets (1 of which is mounted on the camera)

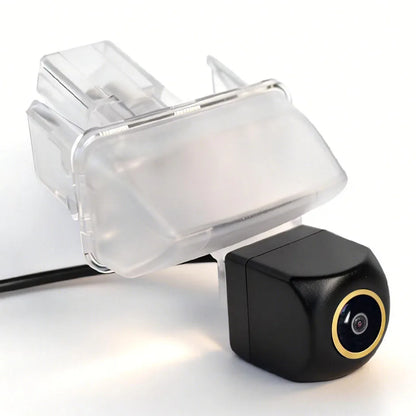

► Easy, Damage-Free Installation: A direct replacement for your license plate light cover. Installs without damage, offering a stylish and elegant upgrade.

► Important Fit Note: Please note that the dimensions of license plate light housings can vary between countries or regions, even for the same vehicle model. We are unable to verify compatibility with all variations. Please confirm that the specific bracket fits your vehicle before purchase. We appreciate your understanding.

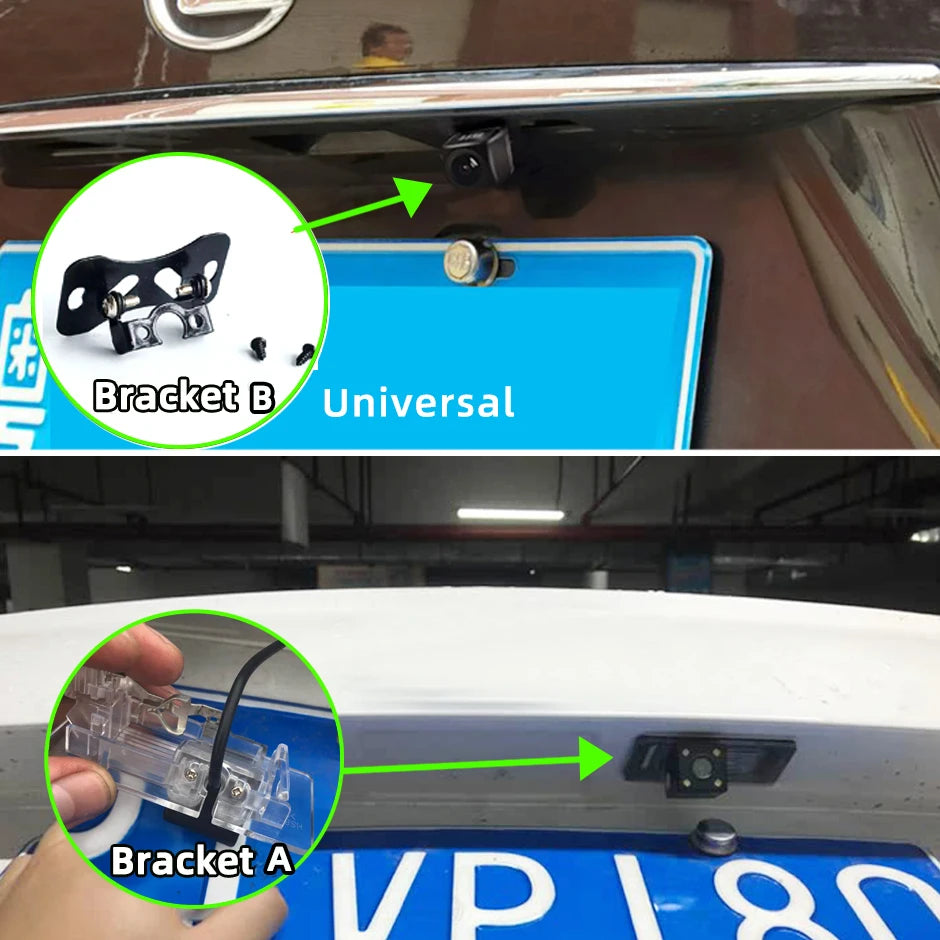

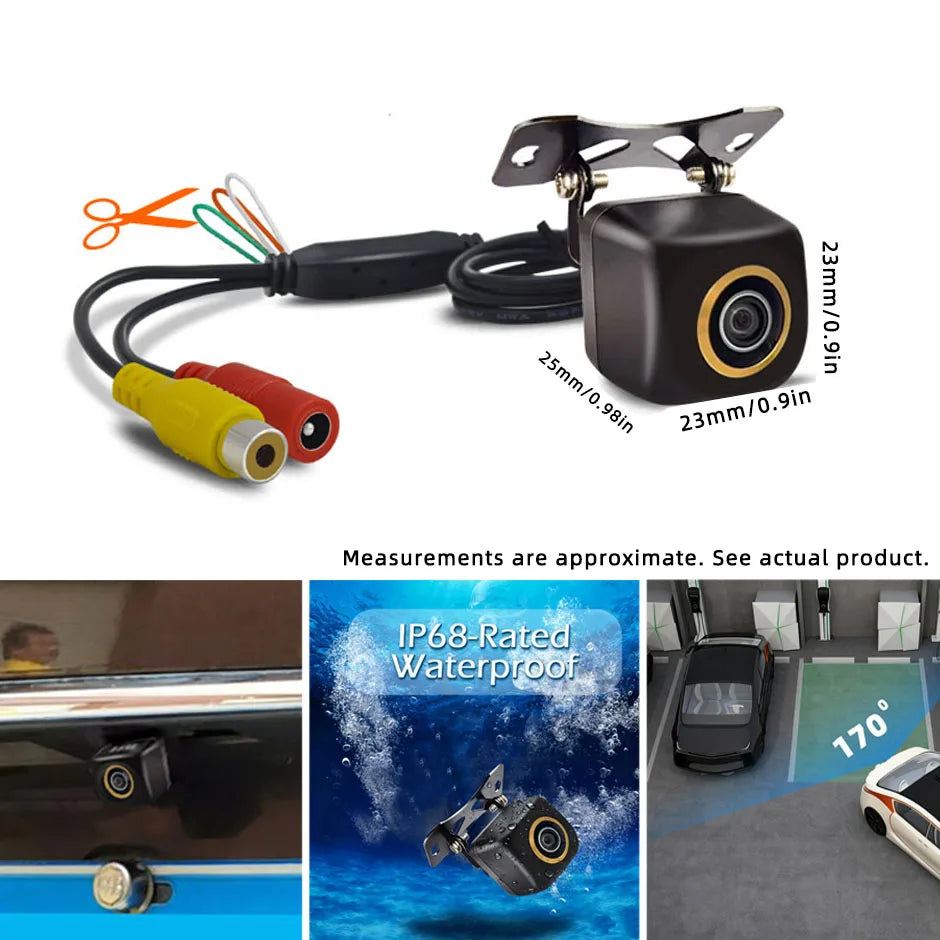

Two brackets are included: Bracket A is designed specifically for license plate lights, and Bracket B is a universal type.

AHD Camera Feature :
* Viewing angle: Real 170 Degrees Visible Range .
* Signal format: NTSC
* Image resolution: 200W pixels
* Video output: AHD, CVBS signal switchable
* Night Vision: Starlight Night Vision. The visible distance is greater than 10 meters.
* Night Vision Image : Automatic Gain Control, Auto White Balance, Auto Backlight Compensation

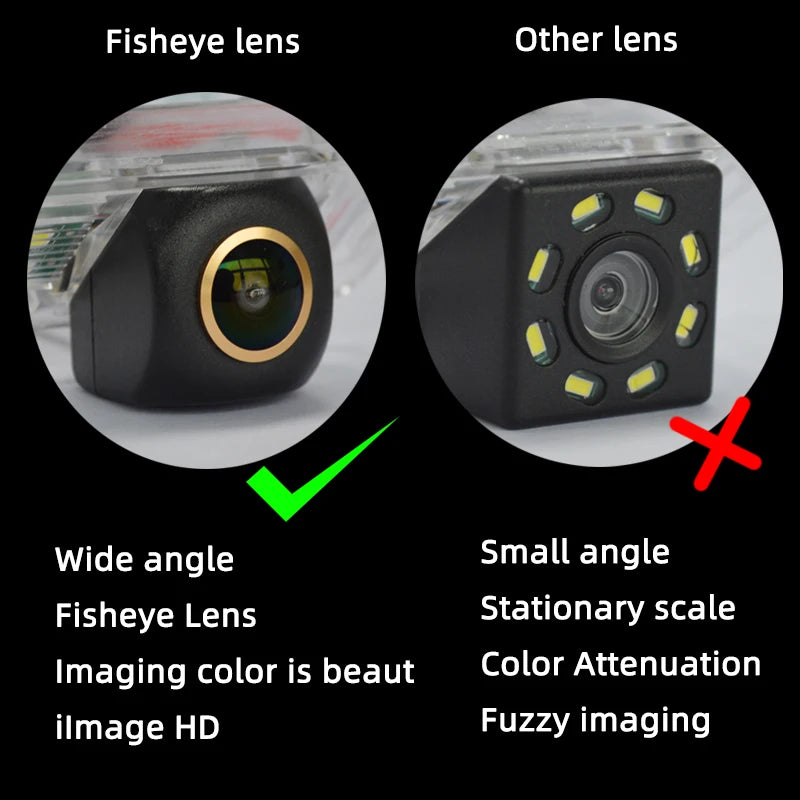

* Lens : 14/16MM Fisheye 6 glass Lens .
* Low illumination: 0.01Lux
* Signal to noise ratio: ≥69dB

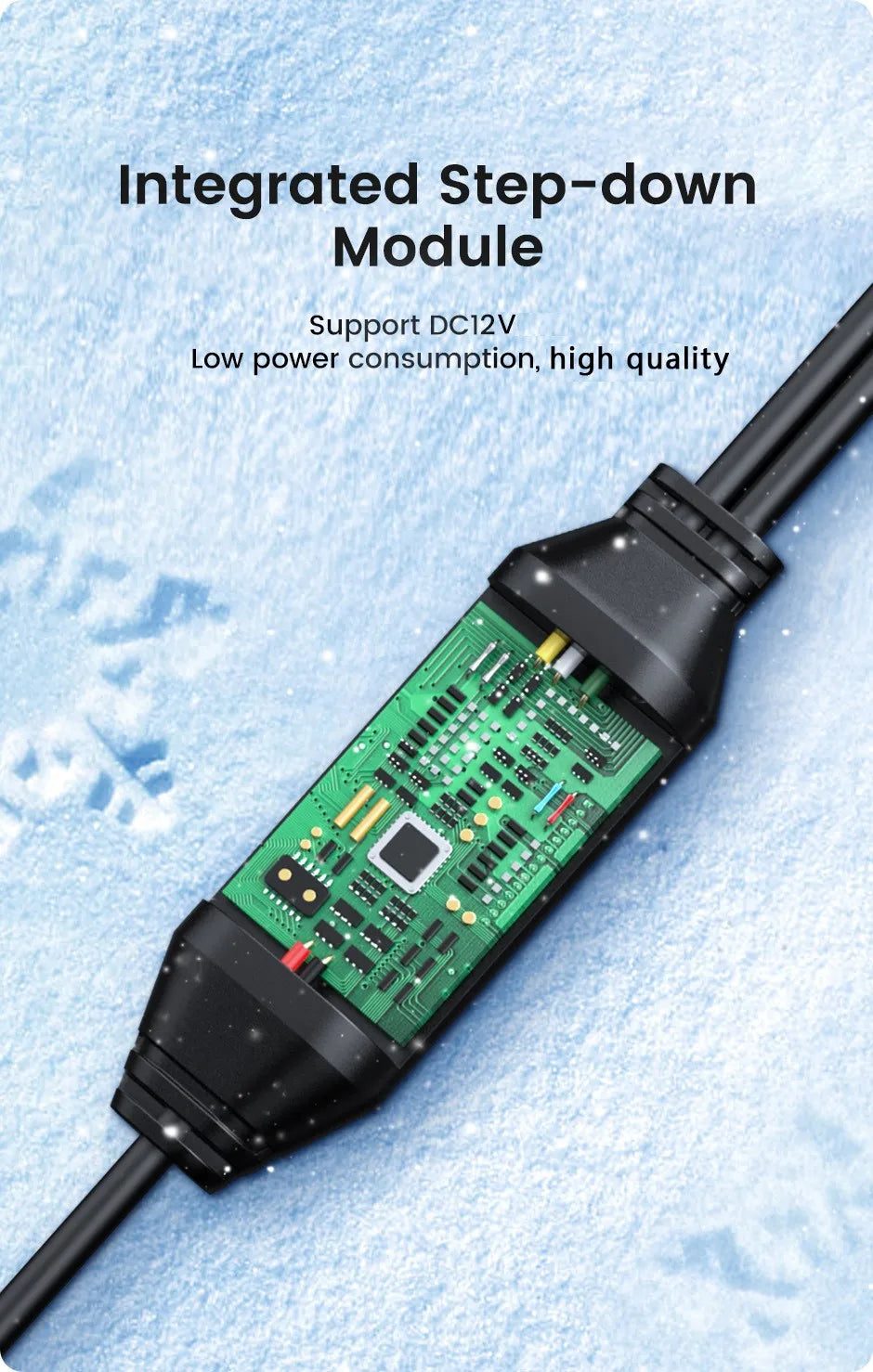

* Working power supply: DC12V/2A
* Working temperature: -45 °C ~ +70°C
* Maximum power: 3W

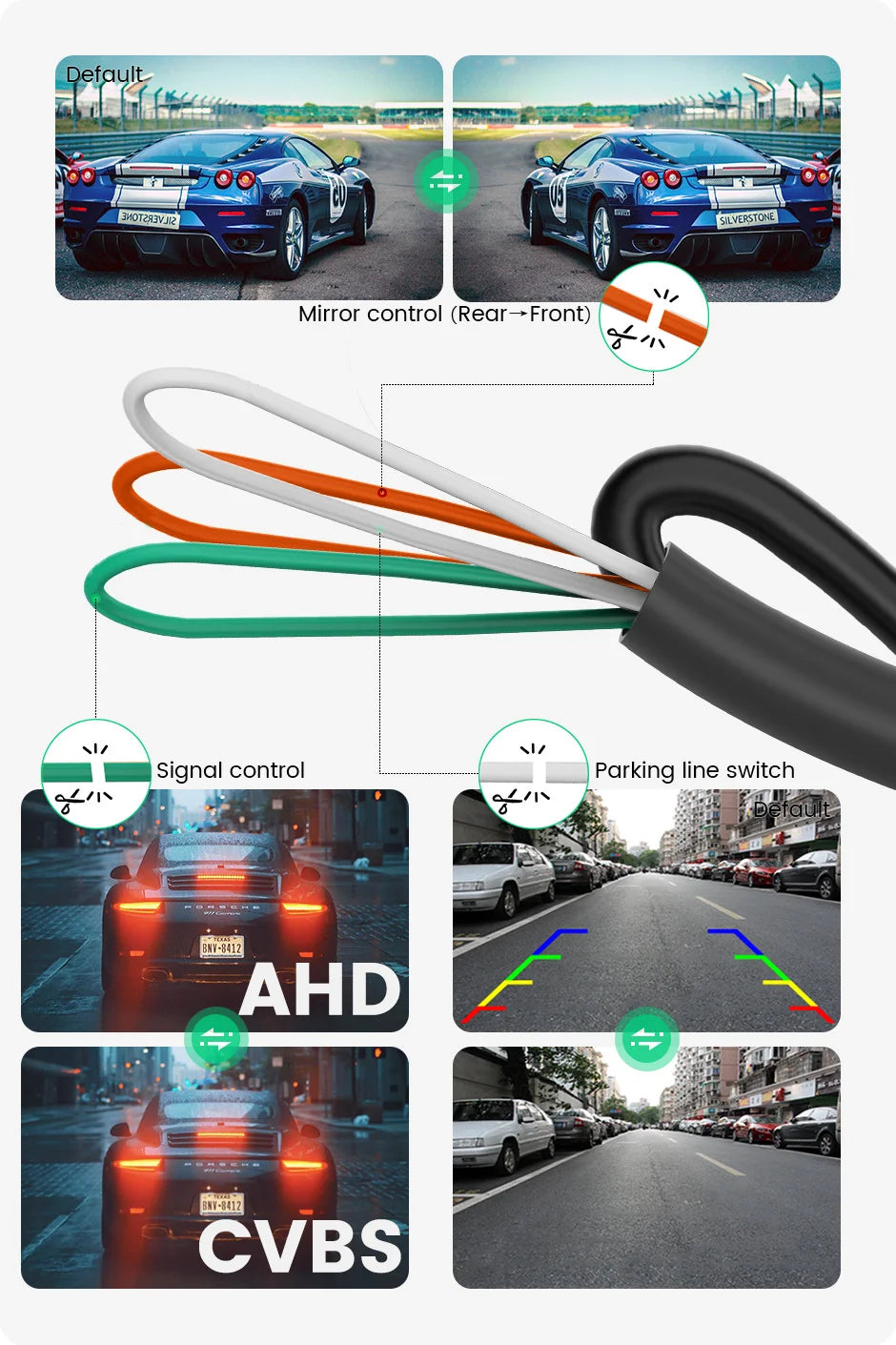

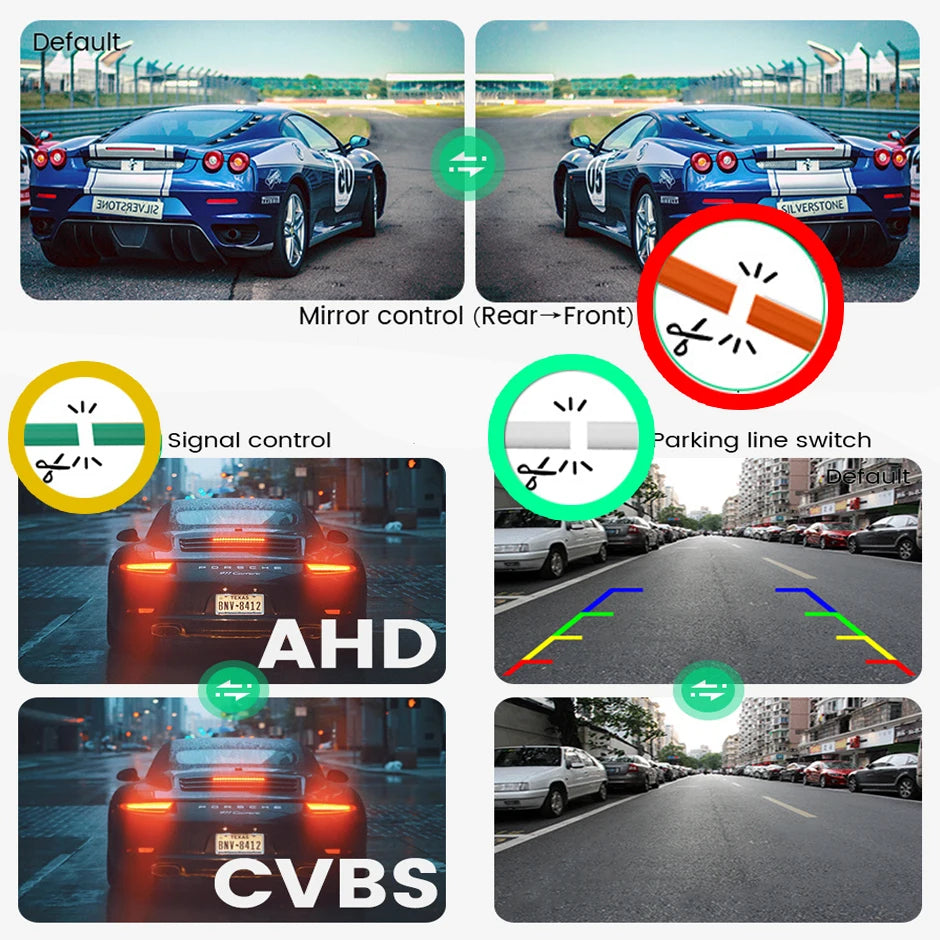

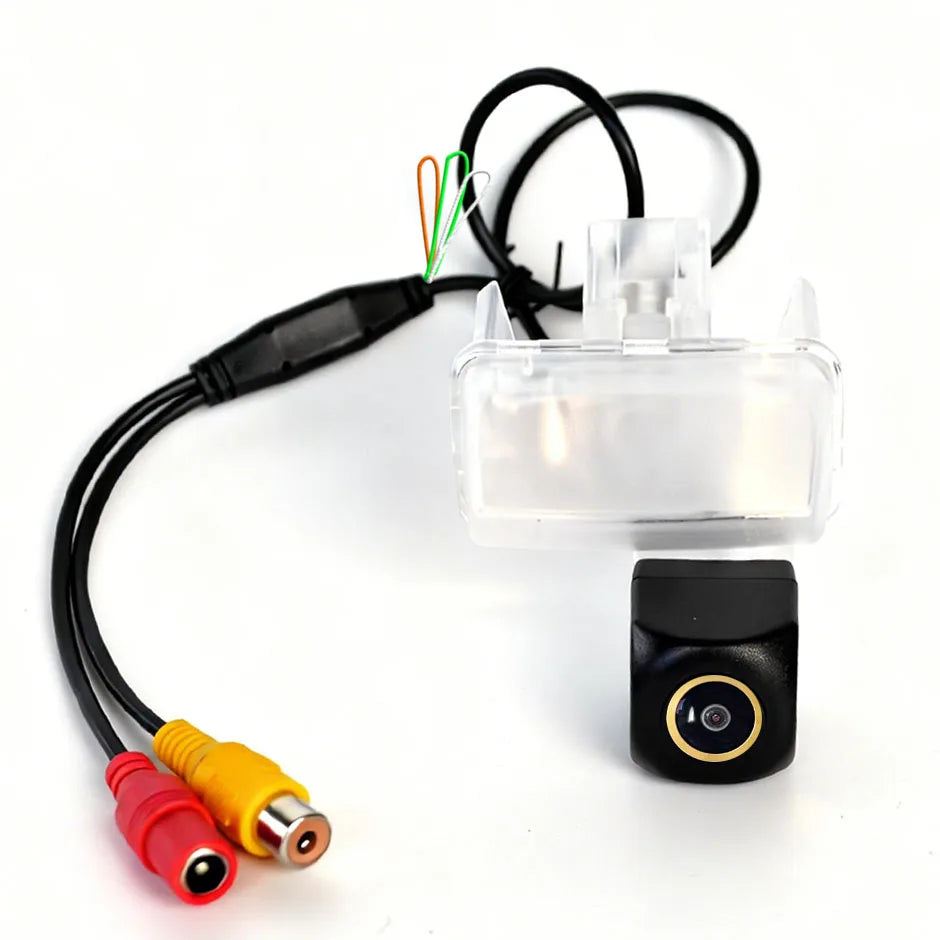

（Cut）Cable Control Functions:
► Green Cable: AHD/CVBS signal switching
► White Cable: Parking line on/off
► Orange Cable: Image flip function

Starlight Night Vision Technology:
Empowers cameras to capture high-definition color imaging in near-darkness (0.001 lux). Maintains clear visibility of critical details like vehicles, streetlights, and environmental features even under ultra-low illumination, eliminating traditional monochrome night vision limitations.
Key Advantages:
►Full-color imaging in extreme low-light conditions
►Enhanced object recognition
►0.001 lux minimum illumination threshold

AHD Technical Highlights:
►HD real-time transmission (25fps@1080P/720P)
►500m coaxial cable transmission range
►Seamless integration with legacy analog systems
►<1ms latency for mission-critical monitoring


Q1: No Signal/Black Screen Detection
Symptoms:
"No Signal" alert
Persistent black screen
Troubleshooting Protocol:
► Power Verification
Confirm 12V DC power delivery to camera (test with multimeter at B+ terminal)
Bypass vehicle wiring: Connect directly to battery terminals for bench test
► Signal Source Validation
Check display input mode: Disconnect green control wire to force CVBS mode
Cycle power after signal switching (AHD↔CVBS transition requires reboot)
► Legacy System Check
Test CVBS compatibility: Connect to TV's RCA input (NTSC standard verification)

Q2: Monochrome Display Issue
Observed Behavior:
Loss of color rendering
Grayscale imaging
Diagnostic Procedure:
► Signal Standard Alignment
PAL/NTSC mismatch resolution:
AHD 1080P cameras: Set to PAL (50Hz)
CVBS analog cameras: Configure NTSC (60Hz)
